GAUGES - VDO

vdo gauges

VDO Gauges

We are proud suppliers of all types of gauges in south africa specialising in top brands like vdo gauges and murphy gauges, our gauges range is top quality, please feel free to peruse through our gauge products.
We offer gauges for trucks, cars, busses and industrial places.

SPEEDOMETER GAUGES | REV COUNTERS

VDO SPEEDOMETER GAUGES

vdo Speedometer gauge-banner



VDO Cockpit International Speedometer Electric

ViewLine Onyx Clock 12V

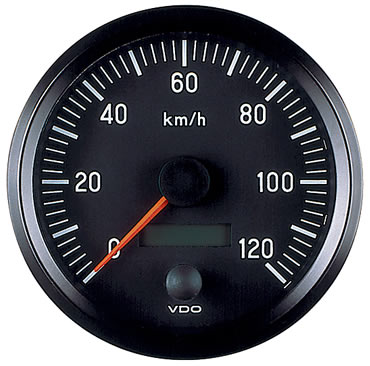

VDO Cockpit International Speedometer Electric 0-120 km/h 100mm 12/24 volt Black Flood Lit Dial Black Bezel



Part no. Range Ø Voltage
437-035-002G 0-120km/h 80mm 12/24
437-055-002G 0-120km/h 100mm 12/24

Note:
8 way socket connector part no: Z863103
8 x terminal part no: Z863016

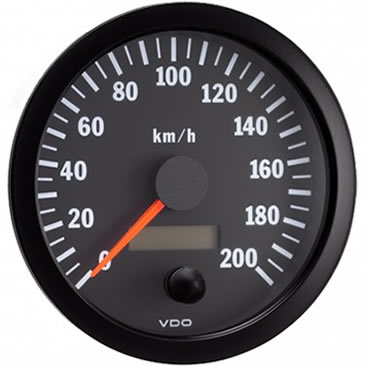

VDO Cockpit Vision Speedometer 200 Km/h 100mm 12-24V

vdo Speedometerr gauge

Floodlit illumination. 12V globe included. Field adjustable to suit 500 to 400,000 imp/km by pulse setting or auto-calibration function through LCD readout via reset button. Total distance 999,999.9 not resettable. Speed display analogue; Odometer and trip distance LC-display trip distance 99,999.9 resettable. Signal source Hall effect, inductive or blocking oscillator sender units.


For 24V application use globe 999-065-002 (2 required). Note: 140mm speedometer impulse Radio programmable (1000-60000 pulses/Km (via software).

Part no. Range Ø Voltage
437-035-001C 0- 60km/h 80mm 12/24
437-035-012C 0- 80km/h 80mm 12/24
437-035-002G 0-120km/h 80mm 12/24
437-035-003C 0-200km/h 80mm 12/24
437-055-001G 0-60km/h 100mm 12/24
437-055-002G 0-120km/h 100mm 12/24
437-025-002G 0-125km/h 140mm 24

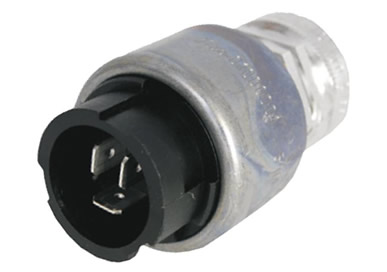

Speed Sensors

Speed Sensors
3 blade connector 6,3 x 0,8





8 pulse speed sensor

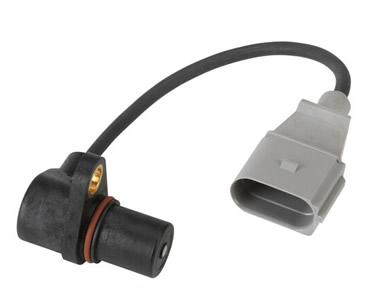

speed sensor - pulse sensor



SENSORS – hall effect

PULSE SENSORS FOR ELECTRONIC TACHOGRAPHS/SPEEDOMETERS 3 BLADE

For instruments which require an electrical pulse (single pulse) for inquiry of the speed and/or the distance. Output: single pulse • Pulses/Revolution: 8 (s- and V-pulse) Pulse Ratio: 30-70%...70-30% • Operating Voltage: 6.5V…16V

Part no. Pulses Thread
2155-01000000 8 M22x1.5 right (female)
2155-02000000 8 M22x1.5 left (external) no nut
A731012 8 7/8” -18UNF Male/Female in line
A-Spec-731   Sender cable connector bayonet plug kit, 3-way spade

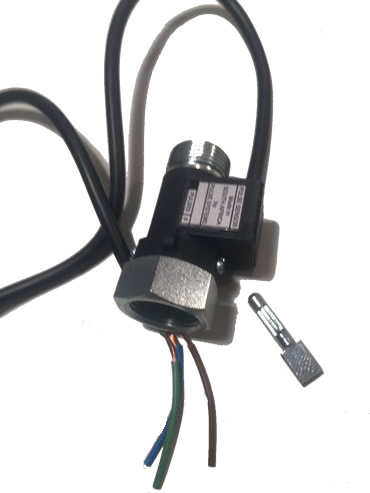

8 Pulse Speed Sensor

  • Blue – Speed Signal
  • Green – Negative
  • Red – Positive
  • 12/24V
  • Square wave signal
  • Cable Length 4M+

PULSE SENSORS FOR ELECTRONIC TACHOGRAPHS 4 BLADE

For instruments which require an electrical pulse (dual pulse inverse) for inquiry of the speed and/or the distance. Output: dual pulse inverse • Pulses/Revolution: 8 (s- and V-pulse) Pulse Radio: 30-70%...70-30% • Operating Voltage: 6.5V…16V

Part no. Pulses Thread
2159-01000000 8 M22x1.5 right (female)
2159-02000000 8 M22x1.5 left (external) no nut
A-Spec-737   Sender cable connector bayonet plug kit, 4-way spade



Speed Sensors – hall effect

PULSE SENSORS FOR ELECTRONIC TACHOGRAPHS/SPEEDOMETERS

For instruments which require an electrical pulse (single pulse) for Inquiry of the speed and/or the distance. For applications requiring an additional mechanical takeoff. Output: single pulse • Pulses/Revolutions: 8 (s- and V-pulse) Pulse Ratio: 30-70%...70-30% • Operating Voltage: 6.5V…16V

Part no. Pulses Thread (Input & Output)
2157-03000000 8 M22x1.5

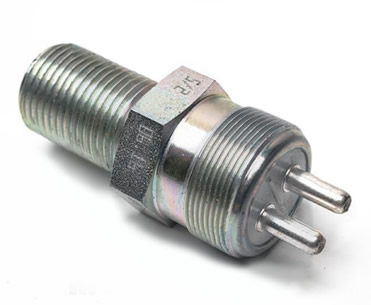

speed sender - inductive push on

SENDERS – inductive push on

Electrical connection: 2-pole, insulated return

Rated voltage: independent

Interior Resistance: Ri 1050Ω ± 100Ω

Test Voltage: 500V

Insulating Resistance: 500kΩ min.

Part no. Signal Thread L1 L2 L3 L4
340-801-005-002C Sine M18x1.5 24.9 26.5 27.65 63
340-804-005-007C Sine M18x1.5 15 35 36 71

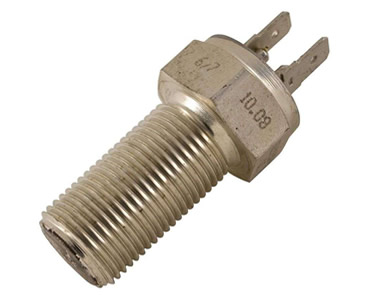

speed sender - inductive blade

SENDERS – inductive blade

Electrical connection: 2-pole, insulated return

Rated voltage: independent

Interior Resistance: Ri 1050W ± 100W

Test Voltage: 500V

Insulating Resistance: 500kW min.

Part no. Signal Thread L1 L2 L3 L4
340-804-006-007C Sine M18x1.5 24.9 26.5 27.65 63

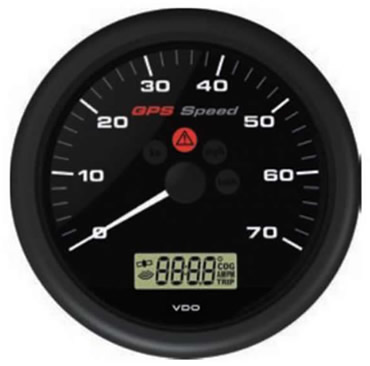

Marine GPS Speedometer

Marine VDO ViewLine GPS Speedometer 0-70

Marine VDO GPS Speedometer 0-70

VDO MECHANICAL TURBO CHARGE GAUGE

Marine VDO ViewLine GPS Speedometer 0-70 kn Black 110 mm

Marine VDO ViewLine GPS Speedometer 0-70 kn Black 110 mm Specifications:
VDO MECHANICAL TURBO CHARGE GAUGE

Colour: Black
Panel hole diameter: 110 mm - 4 3/8"
Range: 0–70 Knots/Km/h/Mph
Lens: Dual - Anti-Fog
Retail package 1 GPS Speedometer

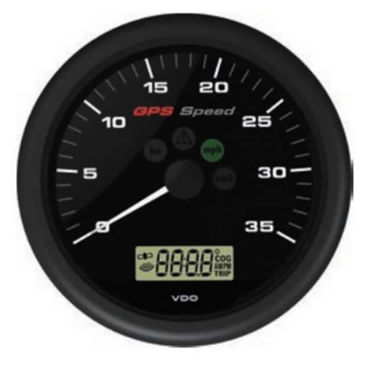

Marine VDO GPS Speedometer 0-35

Marine VDO ViewLine GPS Speedometer 0-35

Marine VDO GPS Speedometer 0-35

VDO ViewLine GPS Speedometer

Marine VDO ViewLine GPS Speedometer 0-35 kn Black 110 mm

Marine VDO ViewLine GPS Speedometer 0-35 kn Black 110 mm Specifications:
VDO ViewLine GPS Speedometer GAUGE

Colour: Black
Panel hole diameter: 110 mm - 4 3/8"
Range: 0–35 Knots/Km/h/Mph
Lens: Dual - Anti-Fog
Retail package 1 GPS Speedometer

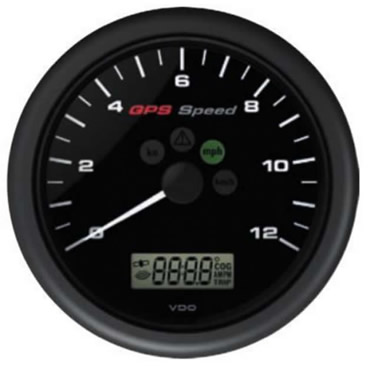

Marine GPS Speedometer 0-12

Marine VDO ViewLine GPS Speedometer 0-12

Marine VDO GPS Speedometer 0-12

VDO ViewLine GPS Speedometer

Marine VDO ViewLine GPS Speedometer 0-35 kn Black 110 mm

Marine VDO ViewLine GPS Speedometer 0-12 kn Black 110 mm Specifications:
VDO ViewLine GPS Speedometer GAUGE

Colour: Black
Panel hole diameter: 110 mm - 4 3/8"
Range: 0–12 Knots/Km/h/Mph
Lens: Dual - Anti-Fog
Retail package 1 GPS Speedometer

SINGLEVIU SPEEDOMETER GAUGES

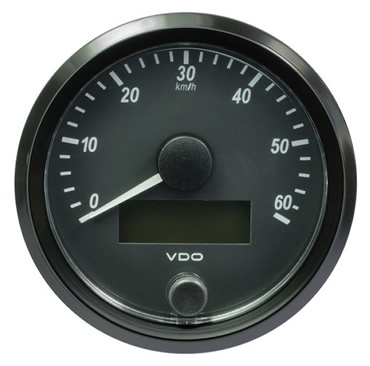

SingleViu Speedometer 60 Kmh Gauge

VDO SingleViu Speedometer 60 Km/h

VDO SingleViu Speedometer 60 Km/h Gauge

Black - Hole: 80-85 mm - 3 1/8 - 3 1/3"
Operating voltage: 8-32 Volt DC
Range: 0 - 60 Km/h
Input signal: Pulses
CANBus input: 65265 - 84 - 0xA7
Connection cable order separately

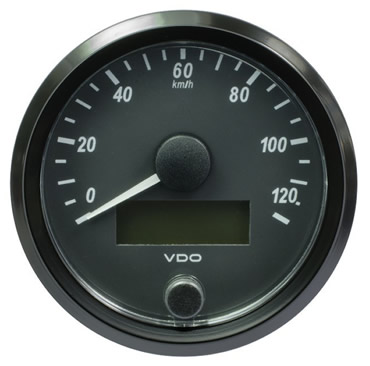

SINGLEVIU SPEEDOMETER Gauge 120 KM/H

SingleViu Speedometer 120 Kmh Gauge

SINGLEVIU SPEEDOMETER 120 KM/H

VDO SingleViu Speedometer 120 Km/h Gauge

Black - Hole: 80-85 mm - 3 1/8 - 3 1/3"
Operating voltage: 8-32 Volt DC
Range: 0 - 120 Km/h
Input signal: Pulses
CANBus input: 65265 - 84 - 0xA7
Connection cable order separately

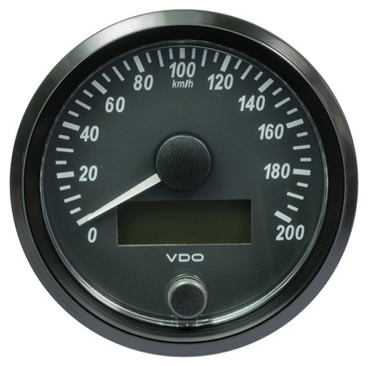

VDO SingleViu Speedometer 200 Km/h

SingleViu Speedometer 200 Kmh Gauge

SingleViu Speedometer 200 Km/h

VDO SingleViu Speedometer 200 Km/h Gauge

Black - Hole: 80-85 mm - 3 1/8 - 3 1/3"
Operating voltage: 8-32 Volt DC
Range: 0 - 200 Km/h
Input signal: Pulses
CANBus input: 65265 - 84 - 0xA7
Connection cable order separately

VDO REV COUNTERS

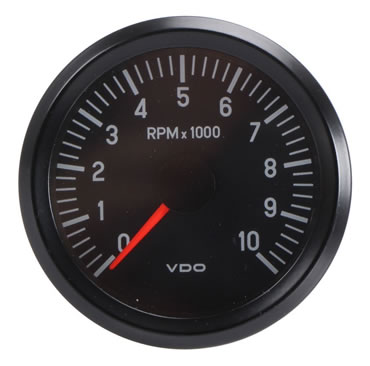

VDO REV-COUNTER 10000 RPM DIAMETER 80 BLACK BACKGROUND 12V PROGRAMMABLE

vdo Speedometerr gauge

The VDO Vision Range Rev Counter features a switchable function allowing the gauges to fit either 4, 6 or 8 cylinder engines. The Vision rev counter have been developed to use fibre-optics, with VDO's Trioptic technology providing optimum night time illumination, clarity and low glare. The VDO Vision range of rev counters have been designed to blend in with a huge range of dash displays, being functional and unstated whilst also managing to provide a quality feel for the cockpit and the reliability VDO have become known for.


Rev Counter Features:

This VDO VISION rev-counter has a black background.
The rev-counter is programmable for 4, 6 or 8 cylinders engines.
Range: 0 to 10 000 RPM
Diameter: 80mm
Voltage: 12V
Background: BLACK




VDO Rev Counter 3.000 RPM 100mm 24V

vdo Speedometerr gauge

Suitable for most petrol and diesel engines
Programmable to 4, 6 or 8 cyl./4-stroke ignition and alternator pick-up (“W” terminal)
Single phase not suitable for star point or magneto system Illumination included


VDO Rev Counter Features:

Colour: Black
Panel hole diameter: 100 mm - 4"
Range: 0 to 3.000 RPM
Operating voltage: 24 Volt DC




VDO Cockpit International Rev Counter 4.000 RPM 52mm 12V

vdo Speedometerr gauge

The Viewline Rev Counter indicates the number of revolutions of the motor and is available in 52 and 85 mm installation diameters. Anti-fog plastic double lens, maximum precision and stylish design with choice of nine various bezels. Our plug and play solution design concept offers a high level of installation flexibility for panel and flush mounting instruments.
Our VDO viewline 52 mm gauges are avalable in black dial version, which are always completed with round bezel in identical color. Viewline accessories bezel concept offers true design flexiblity in the layout of the instrument panels. The three attractive designs in black or chrome are suitable for every machinery instrument panel or special vehicle cockpit.


For 24V application use globe 999-065-002 (2 required). Note: 140mm speedometer impulse Radio programmable (1000-60000 pulses/Km (via software).

VDO Rev Counter Features:

Colour: Black
Panel hole diameter: 52 mm - 2 1/16"
Range: 0 to 4.000 RPM
Operating voltage: 12 Volt DC

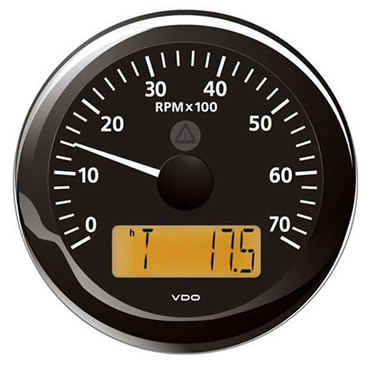

VDO Cockpit International Rev Counter 7000 RPM 80mm 12V

vdo Speedometerr gauge

VDO Vision Programmable Rev Counter, 0-7000 RPM, 12V, 4-6-8 cylinder. For use with alternator, ignition, and 12 volt square wave applications. 3 3/8" (85mm) ...

VDO Vision Black Gauges use fiber optic technology to illuminate gauge pointers for unmatched readability, and they feature VDO's tri-optic through-dial lighting for superb night clarity. VDO Spin-Lok mounting provides maximum flexibility and easy installation without brackets, nuts, or washers by using a spin-on clamp to hold gauges with 360° of force, preventing gauge rotation and panel warping. Mechanical pressure and temperature gauges include metal housings with U-clamp brackets.

Rev Counter 0-7000 RPM Gauge Features:

Colour: Black
Panel hole diameter: 80 mm - 3 1/8"
Range: 0 to 7000 RPM
Operating voltage: 12 Volt DC

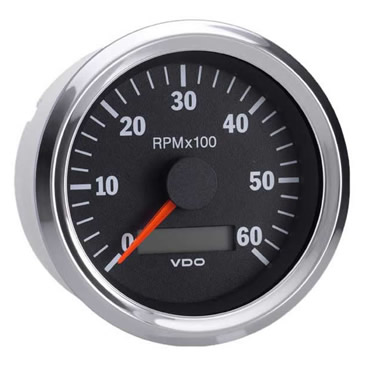

VDO Rev Counter 6000 RPM Gauge

Rev Counter 6000 RPM Gauge

Rev Counter 6000 RPM (Gauge)

VDO Rev Counter 6000 RPM Gauge

Colour: Black
Panel hole diameter: 80 mm - 3 1/8"
Range: 0 to 6.000 RPM
Operating voltage: 12-24 Volt DC

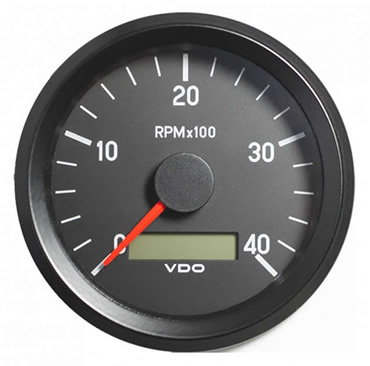

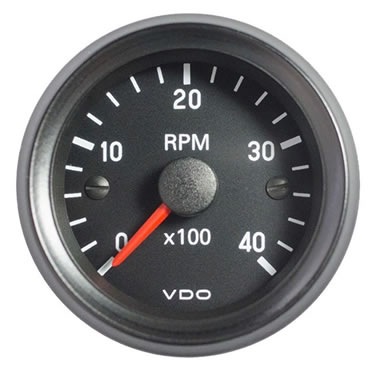

VDO Rev Counter 4000 RPM

Rev Counter 4000 RPM Gauge

VDO Rev Counter 4000 RPM 80mm 12-24V Gauge

VDO Tachometer 4000 RPM Gauge

Colour: Black
Panel hole diameter: 80 mm - 3 1/8"
Range: 0 to 4.000 RPM
Operating voltage: 12-24 Volt DC
Retail package 1 Tachomete

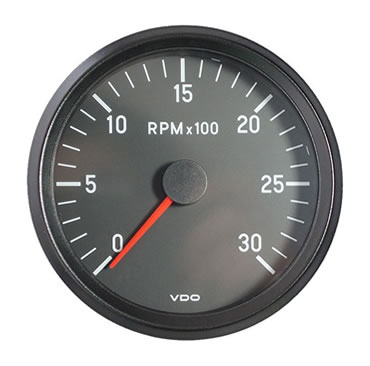

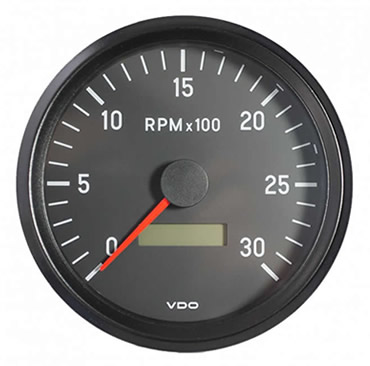

VDO Rev Counter 3000 RPM

Rev Counter 3000 RPM Gauge

VDO Rev Counters 3000 RPM 100mm 12-24V Gauge

VDO Rev Counters 3000 RPM Gauge

Colour: Black
Panel hole diameter: 100 mm - 4"
Range: 0 to 3.000 RPM
Operating voltage: 12-24 Volt DC
Retail package 1 Rev Counter



VDO Rev Counter 8000 RPM Gauge

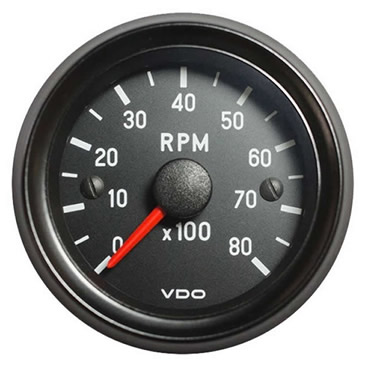

Rev Counter 8000 RPM Gauge

VDO Rev Counter 8000 RPM 52mm 12V Gauge

VDO Rev Counter 8000 RPM Gauge

VDO Cockpit International Rev Counter 8.000 RPM 80mm 12V

Colour: Black
Panel hole diameter: 52 mm - 2 1/16"
Range: 0 to 8.000 RPM
Operating voltage: 12 Volt DC
Retail package 1 Tachometer

VDO SINGLEVIU REV COUNTERS GAUGES

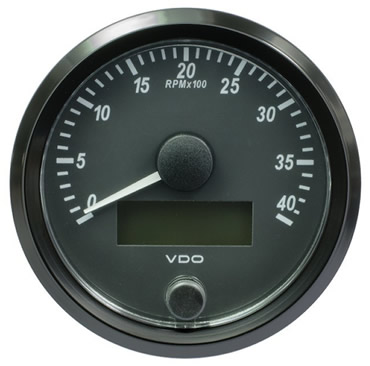

VDO SingleViuRev Counter Gauges 8000 RPM

VDO SingleViu Rev Counter 4000 RPM

VDO SingleViu Tachometer 4000 RPM

Black - Hole: 52 mm - 2 1/16"
Operating voltage: 8-32 Volt DC
Range: 0 - 4.000 RPM
Input signal: CANBus
CANBus input: 61444 - 190 - 0x17
Connection cable order separately

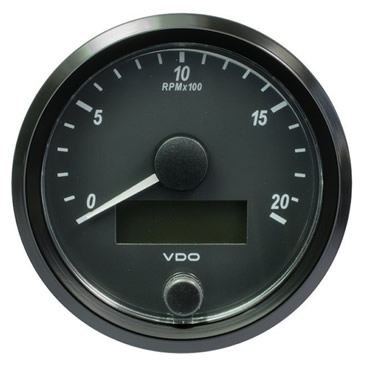

VDO SINGLEVIU REV COUNTERS 2000 RPM GAUGES

VDO SingleViuRev Counter Gauges 2000 RPM

VDO SingleViu Rev Counters 2000 RPM (Gauges)

VDO SingleViu Rev Counters 2000 RPM

Black - Hole: 80-85 mm - 3 1/8 - 3 1/3"
Operating voltage: 8-32 Volt DC
Range: 0 - 2.000 RPM
Input signal: Pulses
CANBus input: 61444 - 190 - 0x17
Connection cable order separately

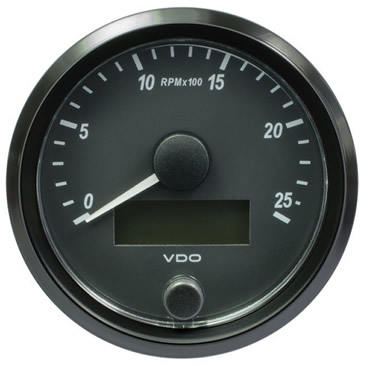

VDO SingleViu Rev Counter 2500 RPM

VDO SingleViuRev Counter Gauges 2500 RPM

VDO SingleViu Rev Counters 2500 RPM Black 80mm - Gauges

VDO SingleViu Rev Counters 2.500 RPM

Black - Hole: 80-85 mm - 3 1/8 - 3 1/3"
Operating voltage: 8-32 Volt DC
Range: 0 - 2.500 RPM
Input signal: Pulses
CANBus input: 61444 - 190 - 0x17
Connection cable order separately




VDO SingleViu Rev Counters 3000 RPM - VDO Gauges

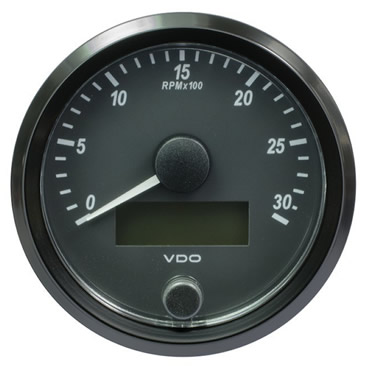

VDO SingleViuRev Counter Gauges 3000 RPM

VDO SingleViu Rev Counters 3000 RPM (GAUGES)

VDO SingleViu Rev Counters 3000 RPM (GAUGES)

Black - Hole: 80-85 mm - 3 1/8 - 3 1/3"
Operating voltage: 8-32 Volt DC
Range: 0 - 3.000 RPM
Input signal: Pulses
CANBus input: 61444 - 190 - 0x17
Connection cable order separately

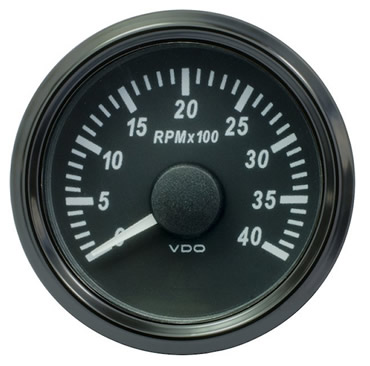

VDO SingleViu Rev Counters 4000 RPM (Gauges)

VDO SingleViuRev Counter Gauges 4000 RPM

VDO SingleViu Rev Counters 4000 RPM Black 52mm (Gauges)

VDO SingleViu Rev Counters 4000 RPM (VDO Gauges)

Black - Hole: 52 mm - 2 1/16"
Operating voltage: 8-32 Volt DC
Range: 0 - 4.000 RPM
Input signal: CANBus
CANBus input: 61444 - 190 - 0x17
Connection cable order separately

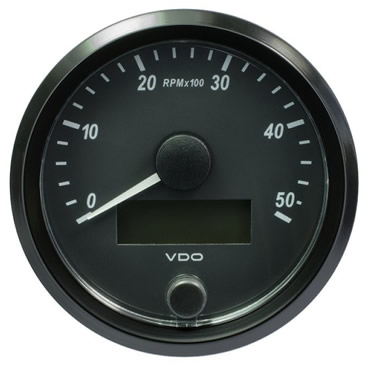

VDO SingleViu Rev 5000 RPM (Gauges)

VDO SingleViu Rev Counter Gauges 5000 RPM

VDO SingleViu Rev Counters 5000 RPM Black 80mm (VDO Gauges)

VDO SingleViu Rev Counters 5.000 RPM

Black - Hole: 80-85 mm - 3 1/8 - 3 1/3"
Operating voltage: 8-32 Volt DC
Range: 0 - 5.000 RPM
Input signal: Pulses
CANBus input: 61444 - 190 - 0x17
Connection cable order separately

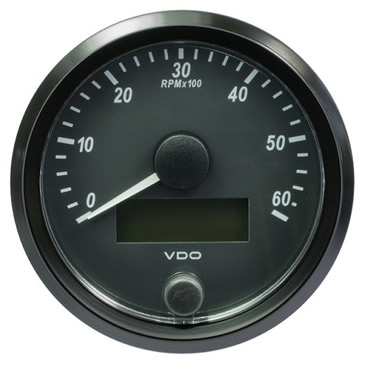

VDO SingleViu Rev Counters 6000 RPM (Gauges)

VDO SingleViu Rev Counter Gauges 6000 RPM

VDO SingleViu Rev Counters 6000 RPM Black 80mm (VDO Gauges)

VDO SingleViu Rev Counters 6.000 RPM (Gauges)

Black - Hole: 80-85 mm - 3 1/8 - 3 1/3"
Operating voltage: 8-32 Volt DC
Range: 0 - 6.000 RPM
Input signal: Pulses
CANBus input: 61444 - 190 - 0x17
Connection cable order separately



VDO SingleViu Rev Counters 8000 RPM (Gauges)

VDO SingleViu Rev Counter Gauges 8000 RPM

VDO SingleViu Rev Counters 8000 RPM Black 80mm (VDO Gauges)

VDO SingleViu Rev Counters 8000 RPM (Gauges)

Black - Hole: 80-85 mm - 3 1/8 - 3 1/3"
Operating voltage: 8-32 Volt DC
Range: 0 - 8.000 RPM
Input signal: Pulses
CANBus input: 61444 - 190 - 0x17
Connection cable order separately

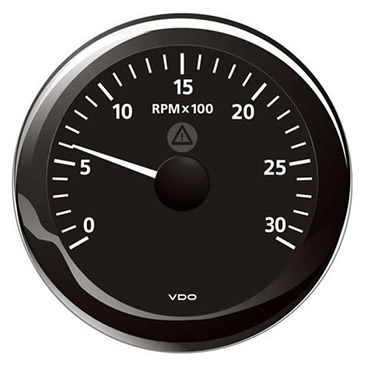

MARINE VDO REV COUNTERS

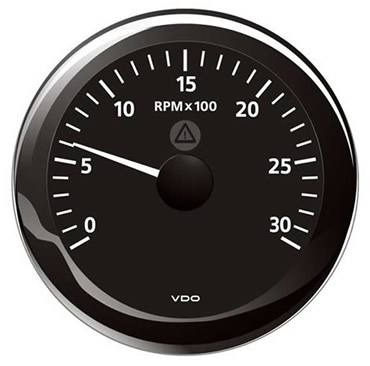

Marine Rev Counter 3000 RPM Gauge

Marine VDO Rev Counter Gauge 3000 RPM Black 85mm



Marine VDO ViewLine Rev Counter Gauge 3000 RPM Black 85mm

ViewLine Rev Counter 3000 RPM Black 110mm Features:

  • Colour: Black
  • Panel hole diameter: 110 mm - 4 3/8"
  • Range: 0 to 3.000 RPM
  • Lens: Single
  • Retail package 1 Rev Counter

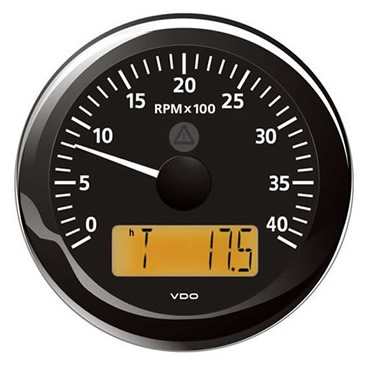

Marine VDO Rev Counter Gauge 4000 RPM

Marine Rev Counter 4000 RPM Gauge

Marine VDO ViewLine Rev Counter Gauge 4000 RPM Black 85mm

Marine VDO ViewLine Rev Counter Gauge 4000 RPM Black 85mm

Specifications:
VDO ViewLine Rev Counter Gauge 4000 RPM

Colour: Black
Panel hole diameter: 85 mm - 3 3/8"
Range: 0 to 4.000 RPM
Lens: Dual - Anti-Fog
Retail package 1 Rev Counter



Marine VDO Rev Counter Gauge 5.000 RPM

Marine Rev Counter 5000 RPM Gauge

Marine VDO ViewLine Rev Counter 5000 RPM Black 85mm

VDO ViewLine Rev Counter Gauge

Marine VDO ViewLine Rev Counter Gauge 5000 RPM Black 85mm

Marine VDO ViewLine Rev Counter Gauge 5.000 RPM Black 85mm Specifications:
VDO ViewLine Rev Counter Gauge

Colour: Black
Panel hole diameter: 85 mm - 3 3/8"
Range: 0 to 5.000 RPM
Lens: Dual - Anti-Fog
Retail package 1 Rev Counter



Marine VDO Rev Counter Gauge 6000 RPM

Marine Rev Counter 6000 RPM Gauge

Marine VDO ViewLine Rev Counter 6000 RPM Black 85mm

Marine VDO ViewLine Rev Counter Gauge 6000 RPM Black 85mm Specifications:
VDO ViewLine Rev Counter Gauge

Colour: Black
Panel hole diameter: 85 mm - 3 3/8"
Range: 0 to 6.000 RPM
Lens: Dual - Anti-Fog
Retail package 1 Rev Counter



Marine VDO Rev Counter Gauge 7000 RPM

Marine Rev Counter 7000 RPM Gauge

Marine VDO ViewLine Rev Counter Gauge 7000 RPM Black 85mm

VDO ViewLine Marine Rev Counter

Marine VDO ViewLine Rev Counter Gauge 7000 RPM Black 85mm

Marine VDO Rev Counter Gauge 7000 RPM Black 85mm Specifications:
VDO ViewLine Rev Counter

Colour: Black
Panel hole diameter: 85 mm - 3 3/8"
Range: 0 to 7.000 RPM
Lens: Dual - Anti-Fog
Retail package 1 Rev Counter



Marine VDO Rev Counter 8000 RPM

Marine Rev Counter 8000 RPM Gauge

Marine VDO ViewLine Rev Counter Gauge 8000 RPM Black 85mm

VDO ViewLine Rev Counter Gauges

Marine VDO ViewLine Rev Counter Gauges 8000 RPM Black 85mm

Marine VDO Rev Counter Gauge 8.000 RPM Black 85mm Specifications:
VDO ViewLine Rev Counter Gauges

Colour: Black
Panel hole diameter: 85 mm - 3 3/8"
Range: 0 to 8.000 RPM
Lens: Dual - Anti-Fog
Retail package 1 Tachometer

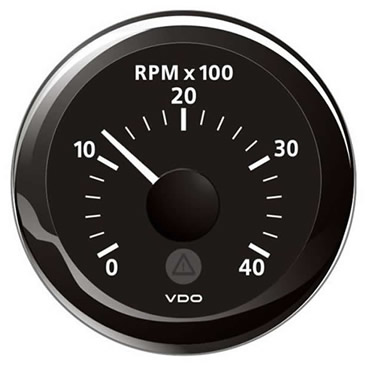

Marine VDO Rev Counter Gauged 4000 RPM

Marine Rev Counter 4000 RPM gauges

Marine VDO ViewLine Rev Counter Gauges 4000 RPM Black 52mm

VDO ViewLine Rev Counter Gauges

Marine VDO ViewLine Tachometer Gauge 4000 RPM Black 52mm

Marine VDO Rev Counter Gauges 4000 RPM Black 52mm Specifications:
VDO ViewLine Rev Counter Gauges

Colour: Black
Panel hole diameter: 52 mm - 2 1/16"
Range: 0 to 4.000 RPM
Lens: Dual - Anti-Fog
Retail package 1 Rev Counter

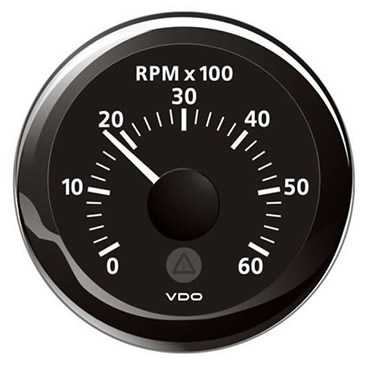

Marine VDO Rev Counter Gauges 6000 RPM

Marine Rev Counter Gauge 6000 RPM

Marine VDO ViewLine Rev Counter Gauges 6000 RPM Black 52mm

VDO ViewLine Rev Counter Gauges

Marine VDO ViewLine Rev Counter Gauge 6000 RPM Black 52mm

Marine VDO Rev Counter Gauges 6000 RPM Black 52mm Specifications:
VDO ViewLine Rev Counter Gauges

Colour: Black
Panel hole diameter: 52 mm - 2 1/16"
Range: 0 to 6000 RPM
Lens: Dual - Anti-Fog
Retail package 1 Rev Counter



Marine VDO Rev Counter Gauges 3000 RPM

Marine Rev Counter Gauge 3000 RPM

Marine VDO Rev Counter Gauges 3000 RPM

VDO Rev Counters Gauges

Marine VDO ViewLine Rev Counters Gauge 3000 RPM Black 85mm

Marine VDO Rev Counters Gauges 3000 RPM Black 85mm Specifications:
VDO ViewLine Rev Counters Gauges

Colour: Black
Panel hole diameter: 85 mm - 3 3/8"
Range: 0 to 3.000 RPM
Lens: Dual - Anti-Fog
Retail package 1 Rev Counters



Marine VDO Rev Counters Gauges 8000 RPM

Marine Rev Counter Gauges 8000 RPM

Marine VDO ViewLine Rev Counters Gauges 8000 RPM

VDO ViewLine Rev Counters

Marine VDO ViewLine Rev Counters Gauges 8000 RPM Black 85mm

Marine VDO Rev Counters Gauges 8.000 RPM Black 52mm Specifications:
VDO ViewLine Rev Counters Gauges

Colour: Black
Panel hole diameter: 52 mm - 2 1/16"
Range: 0 to 8.000 RPM
Lens: Dual - Anti-Fog
Retail package 1 Rev Counters

DOWNLOAD CATALOGUE

(VDO INSTRUMENTATION & ENGINE MONITORING SYSTEMS)
"FOR ALL MAKES OF CARS"




Related VDO Gauges Family














OTHER WEBSITES

Access Control Website

biometricsaccesscontrol.co.za

Time Access Website

timeaccessandautomotive.co.za

Time and Automotive

timeandautomotive.co.za

Time Access and Automotive

timeandautomotive.co.za



























Copyright 2017 © - TAS AUTOMOTIVE - Designed by
